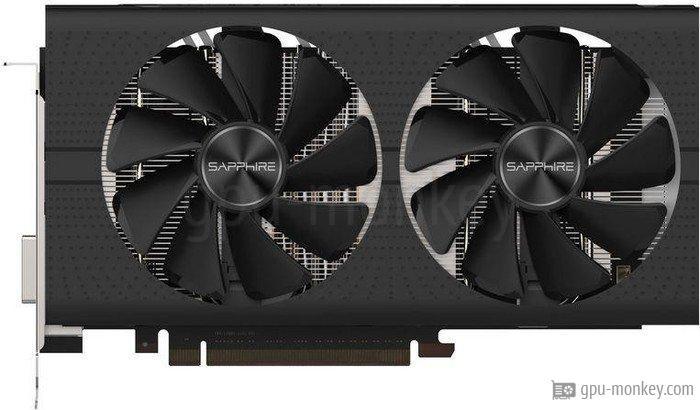

Graphics card Sapphire Pulse Radeon RX 570 8G G5, specifications and benchmarks

This section outlines the key features of the graphics card Sapphire Pulse Radeon RX 570 8G G5.

• Based on
  AMD Radeon RX 570
• GPU Chip
  Polaris 20 XL
• Execution units
  32
• Shader
  2048
• Render Output Units
  32
• Texture Units
  128

Specifications for onboard video memory, including type (e.g., GDDR6), capacity, and bandwidth. Higher capacity and bandwidth contribute to improved gaming and rendering performance.

• Memory Size
  8 GB
• Memory Type
  GDDR5
• Memory Speed
  1.75 GHz
• Memory Bandwith
  224 GB/s
• Memory Interface
  256 bit

Information on the base and boost clock speeds of the graphics card, which directly affect its performance in gaming and rendering applications. Sapphire Pulse Radeon RX 570 8G G5.

• Base Clock
  1.168 GHz
• Boost Clock
  1.284 GHz+ 3 %
• Overclocking
  Yes

Details on the thermal design power (TDP) of the graphics card, including the maximum thermal output under standard and overclocked conditions, guiding the selection of cooling solutions.

• TDP
  150 W
• TDP (up)
  180 W
• Tjunction max
  --
• PCIe-Power
  1 x 8-Pin

Specifications of the cooling system, including fan types and configurations, which are critical for maintaining optimal operating temperatures during intensive workloads. Sapphire Pulse Radeon RX 570 8G G5.

• Fan-Type
  Axial
• Cooler-Type
  Air cooling
• Fan 1
  2 x 95 mm
• Noise (Idle)
  --
• Fan 2
  --
• Noise (Load)
  --

Detailed information about connectivity options, including HDMI, DisplayPort, and DVI interfaces, along with their respective capabilities and supported resolutions.

• Max. Displays
  4
• HDCP-Version
  2.2
• HDMI Ports
  2x HDMI v2.0b
• DP Ports
  2x DP v1.4
• DVI Ports
  1
• VGA Ports
  --
• USB-C Ports
  --

An overview of the hardware capabilities of the graphics card, including support for technologies like ray tracing, DLSS, and Vulkan, which enhance graphical fidelity and performance.

• Max. resolution
  5120x2880
• DirectX
  12
• Raytracing
  No
• DLSS / FSR
  No
• LED
  No LED lighting

Support for various video codecs, such as H.264, HEVC, and VP9, which enhance video playback and streaming capabilities by offloading tasks from the CPU.

• h264
  Decode / Encode
• VP8
  Decode
• h265 / HEVC
  Decode / Encode
• VP9
  Decode
• AV1
  No

• Length
  210 mm
• Height
  117 mm
• Width
  40 mm
• Width (Slots)
  2 PCIe-Slots
• Weight
  --

• GPU Interface
  PCIe 3.0 x 16
• Release date
  Q3/2017
• Release price
  --
• Structure size
  14 nm
• Part-no
  --
• Documents
  data sheet

Common positions Sapphire Pulse Radeon RX 570 8G G5 GPU in popular benchmarks, for comparison with other models.

• FP32 Performance (Single-precision TFLOPS)
  2356 place
• Battlefield 5
  2560 place
• Shadow of the Tomb Raider
  2548 place
• Crypto-Mining Ergo Hashrate (MH/s)
  1922 place
• Crypto-Mining Ravencoin Hashrate (MH/s)
  2206 place
• Crypto-Mining Vertcoin Hashrate (MH/s)
  1693 place
