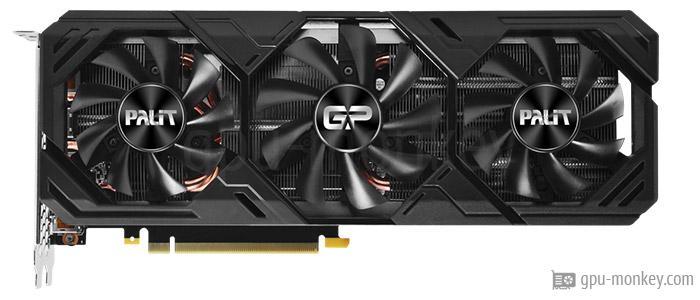

Graphics card Palit GeForce RTX 2070 SUPER GP OC, specifications and benchmarks

This section outlines the key features of the graphics card Palit GeForce RTX 2070 SUPER GP OC.

• Based on
  NVIDIA GeForce RTX 2070 SUPER
• GPU Chip
  TU104
• Execution units
  40
• Shader
  2560
• Render Output Units
  64
• Texture Units
  160

Specifications for onboard video memory, including type (e.g., GDDR6), capacity, and bandwidth. Higher capacity and bandwidth contribute to improved gaming and rendering performance.

• Memory Size
  8 GB
• Memory Type
  GDDR6
• Memory Speed
  1.75 GHz
• Memory Bandwith
  448 GB/s
• Memory Interface
  256 bit

Information on the base and boost clock speeds of the graphics card, which directly affect its performance in gaming and rendering applications. Palit GeForce RTX 2070 SUPER GP OC.

• Base Clock
  1.605 GHz
• Boost Clock
  1.800 GHz+ 2 %
• Overclocking
  Yes

Details on the thermal design power (TDP) of the graphics card, including the maximum thermal output under standard and overclocked conditions, guiding the selection of cooling solutions.

• TDP
  215 W
• TDP (up)
  --
• Tjunction max
  88 °C
• PCIe-Power
  1 x 6-Pin, 1 x 8-Pin

Specifications of the cooling system, including fan types and configurations, which are critical for maintaining optimal operating temperatures during intensive workloads. Palit GeForce RTX 2070 SUPER GP OC.

• Fan-Type
  Axial
• Cooler-Type
  Air cooling
• Fan 1
  3 x 80 mm
• Noise (Idle)
  0 dB / Silent
• Fan 2
  --
• Noise (Load)
  --

Detailed information about connectivity options, including HDMI, DisplayPort, and DVI interfaces, along with their respective capabilities and supported resolutions.

• Max. Displays
  4
• HDCP-Version
  2.2
• HDMI Ports
  1x HDMI v2.0b
• DP Ports
  3x DP v1.4a
• DVI Ports
  --
• VGA Ports
  --
• USB-C Ports
  --

An overview of the hardware capabilities of the graphics card, including support for technologies like ray tracing, DLSS, and Vulkan, which enhance graphical fidelity and performance.

• Max. resolution
  7680x4320
• DirectX
  12_2
• Raytracing
  Yes
• DLSS / FSR
  Yes
• LED
  No LED lighting

Support for various video codecs, such as H.264, HEVC, and VP9, which enhance video playback and streaming capabilities by offloading tasks from the CPU.

• h264
  Decode / Encode
• VP8
  Decode
• h265 / HEVC
  Decode / Encode
• VP9
  Decode
• AV1
  No

• Length
  288 mm
• Height
  112 mm
• Width
  50 mm
• Width (Slots)
  3 PCIe-Slots
• Weight
  --

• GPU Interface
  PCIe 3.0 x 16
• Release date
  Q1/2020
• Release price
  --
• Structure size
  12 nm
• Part-no
  NE6207ST19P2-180T
• Documents
  data sheet

Common positions Palit GeForce RTX 2070 SUPER GP OC GPU in popular benchmarks, for comparison with other models.

• FP32 Performance (Single-precision TFLOPS)
  1532 place
• Battlefield 5
  1345 place
• Shadow of the Tomb Raider
  1291 place
• Crypto-Mining Ethereum Hashrate (MH/s)
  1274 place
• Crypto-Mining Ergo Hashrate (MH/s)
  1387 place
• Crypto-Mining Ravencoin Hashrate (MH/s)
  1180 place
• 3DMark Benchmark
  1203 place
