GIGABYTE GeForce RTX 2080 SUPER Windforce 8G
Select video card 2
Overall score
star star star star star
Released
Q3/2019
GIGABYTE GeForce RTX 2080 SUPER Windforce 8G

Graphics card GIGABYTE GeForce RTX 2080 SUPER Windforce 8G, specifications and benchmarks

1146 place in the overall ranking Graphics Cards!
Review of the GIGABYTE GeForce RTX 2080 SUPER Windforce 8G 8 GB GDDR6 graphics card. Is it suitable for gaming, encoding, or 4K? What can the GIGABYTE GeForce RTX 2080 SUPER Windforce 8G be compared to, and what equivalents are better or worse than this model? What equivalent is available for purchase? Choose a processor for GIGABYTE GeForce RTX 2080 SUPER Windforce 8G 8 GB GDDR6 using detailed specifications and upgrade your workstation.

Specifications

Technical data
General Info

This section outlines the key features of the graphics card GIGABYTE GeForce RTX 2080 SUPER Windforce 8G.

  • Based on
    NVIDIA GeForce RTX 2080 SUPER
  • GPU Chip
    TU104
  • Execution units
    48
  • Shader
    3072
  • Render Output Units
    64
  • Texture Units
    192
no data
Memory Specs

Specifications for onboard video memory, including type (e.g., GDDR6), capacity, and bandwidth. Higher capacity and bandwidth contribute to improved gaming and rendering performance.

  • Memory Size
    8 GB
  • Memory Type
    GDDR6
  • Memory Speed
    1.938 GHz
  • Memory Bandwith
    496 GB/s
  • Memory Interface
    256 bit
no data
Clock Frequency

Information on the base and boost clock speeds of the graphics card, which directly affect its performance in gaming and rendering applications. GIGABYTE GeForce RTX 2080 SUPER Windforce 8G.

  • Base Clock
    1.650 GHz
  • Boost Clock
    1.815 GHz
  • Overclocking
    Yes
* see below
Thermal Management

Details on the thermal design power (TDP) of the graphics card, including the maximum thermal output under standard and overclocked conditions, guiding the selection of cooling solutions.

  • TDP
    250 W
  • TDP (up)
    280 W
  • Tjunction max
    --
  • PCIe-Power
    1 x 6-Pin, 1 x 8-Pin
no data
Cooler & Fan Types

Specifications of the cooling system, including fan types and configurations, which are critical for maintaining optimal operating temperatures during intensive workloads. GIGABYTE GeForce RTX 2080 SUPER Windforce 8G.

  • Fan-Type
    Axial
  • Cooler-Type
    Air cooling
  • Fan 1
    3 x 82 mm
  • Noise (Idle)
    0 dB / Silent
  • Fan 2
    --
  • Noise (Load)
    44 dB
no data
Interfaces

Detailed information about connectivity options, including HDMI, DisplayPort, and DVI interfaces, along with their respective capabilities and supported resolutions.

  • Max. Displays
    4
  • HDCP-Version
    2.2
  • HDMI Ports
    1x HDMI v2.0b
  • DP Ports
    3x DP v1.4a
  • DVI Ports
    --
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical Data

An overview of the hardware capabilities of the graphics card, including support for technologies like ray tracing, DLSS, and Vulkan, which enhance graphical fidelity and performance.

  • Max. resolution
    7680x4320
  • DirectX
    12_2
  • Raytracing
    Yes
  • DLSS / FSR
    Yes
  • LED
    No LED lighting
no data
Supported Video Codecs

Support for various video codecs, such as H.264, HEVC, and VP9, which enhance video playback and streaming capabilities by offloading tasks from the CPU.

  • h264
    Decode / Encode
  • VP8
    Decode
  • h265 / HEVC
    Decode / Encode
  • VP9
    Decode
  • AV1
    No
no data
Dimensions
  • Length
    286 mm
  • Height
    114 mm
  • Width
    50 mm
  • Width (Slots)
    3 PCIe-Slots
  • Weight
    --
no data
Additional Information
  • GPU Interface
    PCIe 3.0 x 16
  • Release date
    Q3/2019
  • Release price
    729 $
  • Structure size
    12 nm
  • Part-no
    GV-N208SWF3-8GD
  • Documents
    data sheet
no data
Positions in all rankings

Common positions GIGABYTE GeForce RTX 2080 SUPER Windforce 8G GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    1212 place
  • Battlefield 5
    1022 place
  • Shadow of the Tomb Raider
    1022 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    1363 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    1277 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    813 place
  • 3DMark Benchmark
    969 place

Benchmarks

Performance tests GPU

Evaluate the performance scores from various benchmark tests for GIGABYTE GeForce RTX 2080 SUPER Windforce 8G in comparison with other graphics cards to gain insights into the GPU's real-world speed during content processing.

Benchmarks encompass tasks such as floating point calculations, 3D model creation, and cryptocurrency mining.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
3DMark Benchmark
3DMark is designed for gamers, overclockers and system builders who want to get the most out of their hardware
11504
11504
11490
GIGABYTE GeForce RTX 2080 SUPER Windforce 8G
11490
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
67 fps (avg)
67 fps (avg)
66 fps (avg)
GIGABYTE GeForce RTX 2080 SUPER Windforce 8G
66 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
47 fps (avg)
47 fps (avg)
46 fps (avg)
GIGABYTE GeForce RTX 2080 SUPER Windforce 8G
46 fps (avg)
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards
29 MH/s
29 MH/s
28 MH/s
GIGABYTE GeForce RTX 2080 SUPER Windforce 8G
28 MH/s

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with GIGABYTE GeForce RTX 2080 SUPER Windforce 8G.

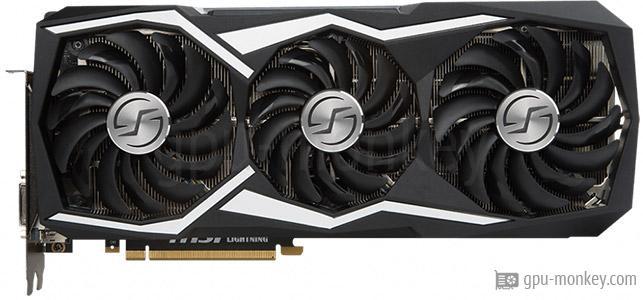

MSI GeForce GTX 1080 Ti LIGHTNING View
GIGABYTE GeForce RTX 2080 SUPER Gaming 8G (Rev. 2.0) View
MSI Radeon RX Vega 64 Air Boost 8G OC View
GIGABYTE GeForce RTX 2080 SUPER Gaming 8G (Rev. 1.0) View

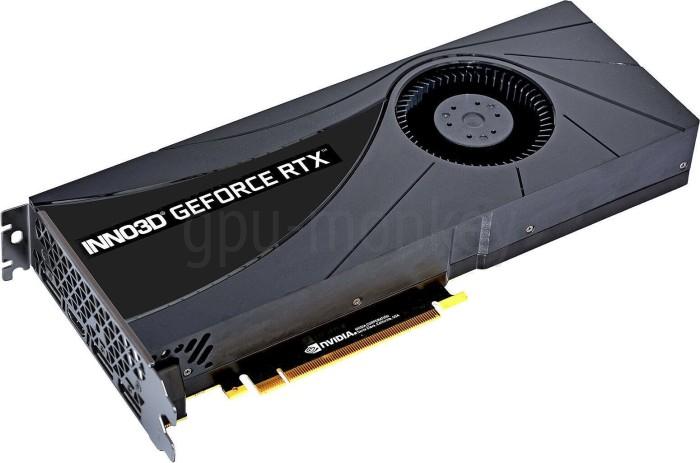

INNO3D GeForce RTX 2080 SUPER JET View
SAPPHIRE Nitro+ Radeon RX 6650 XT View
Sapphire Nitro+ Radeon RX Vega 64 View
GALAX GeForce RTX 2080 SUPER View

*

Base Clock - the guaranteed speed specified by the manufacturer, reflecting the cooling and binning standards for which the GPU is factory-tested.

Boost Clock - the theoretical minimum speed achievable when overclocking the graphics card, taking into account cooling and binning considerations.
