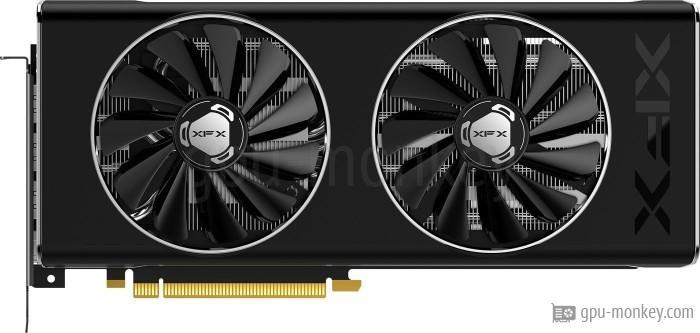

Graphics card XFX Radeon RX 5700 XT Thicc II, specifications and benchmarks

This section outlines the key features of the graphics card XFX Radeon RX 5700 XT Thicc II.

• Based on
  AMD Radeon RX 5700 XT
• GPU Chip
  Navi 10 XT
• Execution units
  40
• Shader
  2560
• Render Output Units
  64
• Texture Units
  160

Specifications for onboard video memory, including type (e.g., GDDR6), capacity, and bandwidth. Higher capacity and bandwidth contribute to improved gaming and rendering performance.

• Memory Size
  8 GB
• Memory Type
  GDDR6
• Memory Speed
  1.75 GHz
• Memory Bandwith
  448 GB/s
• Memory Interface
  256 bit

Information on the base and boost clock speeds of the graphics card, which directly affect its performance in gaming and rendering applications. XFX Radeon RX 5700 XT Thicc II.

• Base Clock
  1.605 GHz
• Boost Clock
  1.905 GHz
• Avg (Game) Clock
  1.755 GHz
• Overclocking
  Yes

Details on the thermal design power (TDP) of the graphics card, including the maximum thermal output under standard and overclocked conditions, guiding the selection of cooling solutions.

• TDP
  225 W
• TDP (up)
  335 W
• Tjunction max
  89 °C
• PCIe-Power
  1 x 6-Pin, 1 x 8-Pin

Specifications of the cooling system, including fan types and configurations, which are critical for maintaining optimal operating temperatures during intensive workloads. XFX Radeon RX 5700 XT Thicc II.

• Fan-Type
  Axial
• Cooler-Type
  Air cooling
• Fan 1
  2 x 100 mm
• Noise (Idle)
  0 dB / Silent
• Fan 2
  --
• Noise (Load)
  44 dB

Detailed information about connectivity options, including HDMI, DisplayPort, and DVI interfaces, along with their respective capabilities and supported resolutions.

• Max. Displays
  4
• HDCP-Version
  2.3
• HDMI Ports
  1x HDMI v2.0b
• DP Ports
  3x DP v1.4
• DVI Ports
  --
• VGA Ports
  --
• USB-C Ports
  --

An overview of the hardware capabilities of the graphics card, including support for technologies like ray tracing, DLSS, and Vulkan, which enhance graphical fidelity and performance.

• Max. resolution
  7680x4320
• DirectX
  12_2
• Raytracing
  Yes
• DLSS / FSR
  No
• LED
  No LED lighting

Support for various video codecs, such as H.264, HEVC, and VP9, which enhance video playback and streaming capabilities by offloading tasks from the CPU.

• h264
  Decode / Encode
• VP8
  Decode
• h265 / HEVC
  Decode / Encode
• VP9
  Decode / Encode
• AV1
  No

• Length
  293 mm
• Height
  130 mm
• Width
  55 mm
• Width (Slots)
  3 PCIe-Slots
• Weight
  --

• GPU Interface
  PCIe 4.0 x 16
• Release date
  Q3/2019
• Release price
  389 $
• Structure size
  7 nm
• Part-no
  --
• Documents
  data sheet

Common positions XFX Radeon RX 5700 XT Thicc II GPU in popular benchmarks, for comparison with other models.

• FP32 Performance (Single-precision TFLOPS)
  1428 place
• Battlefield 5
  1272 place
• Shadow of the Tomb Raider
  1477 place
• Crypto-Mining Ethereum Hashrate (MH/s)
  758 place
• Crypto-Mining Ergo Hashrate (MH/s)
  998 place
• Crypto-Mining Ravencoin Hashrate (MH/s)
  1801 place
• 3DMark Benchmark
  1674 place
• Crypto-Mining Vertcoin Hashrate (MH/s)
  710 place
