Sapphire Pulse Radeon RX 5600 XT

Graphics card Sapphire Pulse Radeon RX 5600 XT, specifications and benchmarks

1748 place in the overall ranking Graphics Cards!
Review of the Sapphire Pulse Radeon RX 5600 XT 6 GB GDDR6 graphics card. Is it suitable for gaming, encoding, or 4K? What can the Sapphire Pulse Radeon RX 5600 XT be compared to, and what equivalents are better or worse than this model? What equivalent is available for purchase? Choose a processor for Sapphire Pulse Radeon RX 5600 XT 6 GB GDDR6 using detailed specifications and upgrade your workstation.

Specifications

Technical data
General Info

This section outlines the key features of the graphics card Sapphire Pulse Radeon RX 5600 XT.

  • Based on
    AMD Radeon RX 5600 XT
  • GPU Chip
    Navi 10 XLE
  • Execution units
    36
  • Shader
    2304
  • Render Output Units
    64
  • Texture Units
    144
no data
Memory Specs

Specifications for onboard video memory, including type (e.g., GDDR6), capacity, and bandwidth. Higher capacity and bandwidth contribute to improved gaming and rendering performance.

  • Memory Size
    6 GB
  • Memory Type
    GDDR6
  • Memory Speed
    1.75 GHz
  • Memory Bandwith
    336 GB/s
  • Memory Interface
    192 bit
no data
Clock Frequency

Information on the base and boost clock speeds of the graphics card, which directly affect its performance in gaming and rendering applications. Sapphire Pulse Radeon RX 5600 XT.

  • Base Clock
    1.130 GHz
  • Boost Clock
    1.750 GHz+ 12 %
  • Avg (Game) Clock
    1.615 GHz+ 17 %
  • Overclocking
    Yes
* see below
Thermal Management

Details on the thermal design power (TDP) of the graphics card, including the maximum thermal output under standard and overclocked conditions, guiding the selection of cooling solutions.

  • TDP
    160 W
  • TDP (up)
    195 W
  • Tjunction max
    --
  • PCIe-Power
    1 x 8-Pin
no data
Cooler & Fan Types

Specifications of the cooling system, including fan types and configurations, which are critical for maintaining optimal operating temperatures during intensive workloads. Sapphire Pulse Radeon RX 5600 XT.

  • Fan-Type
    Axial
  • Cooler-Type
    Air cooling
  • Fan 1
    2 x 100 mm
  • Noise (Idle)
    34 dB
  • Fan 2
    --
  • Noise (Load)
    38 dB
no data
Interfaces

Detailed information about connectivity options, including HDMI, DisplayPort, and DVI interfaces, along with their respective capabilities and supported resolutions.

  • Max. Displays
    4
  • HDCP-Version
    2.3
  • HDMI Ports
    1x HDMI v2.0b
  • DP Ports
    3x DP v1.4
  • DVI Ports
    --
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical Data

An overview of the hardware capabilities of the graphics card, including support for technologies like ray tracing, DLSS, and Vulkan, which enhance graphical fidelity and performance.

  • Max. resolution
    7680x4320
  • DirectX
    12_2
  • Raytracing
    Yes
  • DLSS / FSR
    No
  • LED
    No LED lighting
no data
Supported Video Codecs

Support for various video codecs, such as H.264, HEVC, and VP9, which enhance video playback and streaming capabilities by offloading tasks from the CPU.

  • h264
    Decode / Encode
  • VP8
    Decode
  • h265 / HEVC
    Decode / Encode
  • VP9
    Decode / Encode
  • AV1
    No
no data
Dimensions
  • Length
    254 mm
  • Height
    135 mm
  • Width
    47 mm
  • Width (Slots)
    3 PCIe-Slots
  • Weight
    --
no data
Additional Information
  • GPU Interface
    PCIe 4.0 x 16
  • Release date
    Q1/2020
  • Release price
    --
  • Structure size
    7 nm
  • Part-no
    11296-01-20G
  • Documents
    data sheet
no data
Positions in all rankings

Common positions Sapphire Pulse Radeon RX 5600 XT GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    1735 place
  • Battlefield 5
    1787 place
  • Shadow of the Tomb Raider
    1797 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    1340 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    1580 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    1648 place
  • 3DMark Benchmark
    1983 place
  • Crypto-Mining Vertcoin Hashrate (MH/s)
    1000 place

Benchmarks

Performance tests GPU

Evaluate the performance scores from various benchmark tests for Sapphire Pulse Radeon RX 5600 XT in comparison with other graphics cards to gain insights into the GPU's real-world speed during content processing.

Benchmarks encompass tasks such as floating point calculations, 3D model creation, and cryptocurrency mining.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
3DMark Benchmark
3DMark is designed for gamers, overclockers and system builders who want to get the most out of their hardware
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
51 fps (avg)
51 fps (avg)
50 fps (avg)
Sapphire Pulse Radeon RX 5600 XT
50 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
33 fps (avg)
33 fps (avg)
32 fps (avg)
Sapphire Pulse Radeon RX 5600 XT
32 fps (avg)
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards
Crypto-Mining Vertcoin Hashrate (MH/s)
VertCoin cryptocurrency can be mined on both Nvidia and AMD and is interesting because it mines perfectly on old GPUs like GTX1050, R9 290 and even GTX970
0.59 MH/s
0.59 MH/s
0.58 MH/s
Sapphire Pulse Radeon RX 5600 XT
0.58 MH/s

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with Sapphire Pulse Radeon RX 5600 XT.

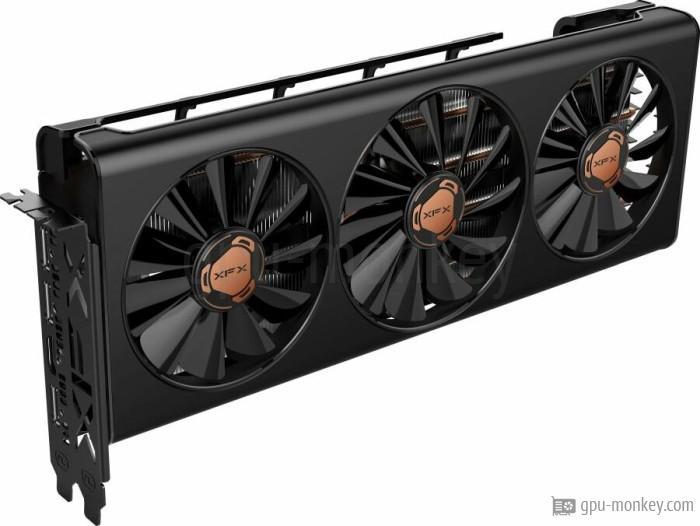

XFX Radeon RX 5600 XT Thicc III Pro View

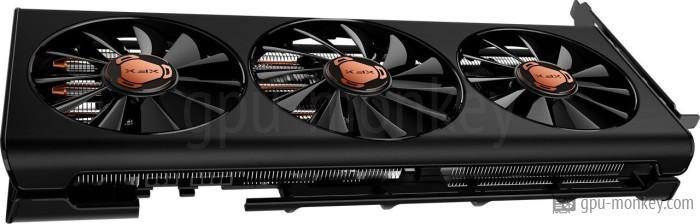

XFX Radeon RX 5600 XT Thicc III Ultra View

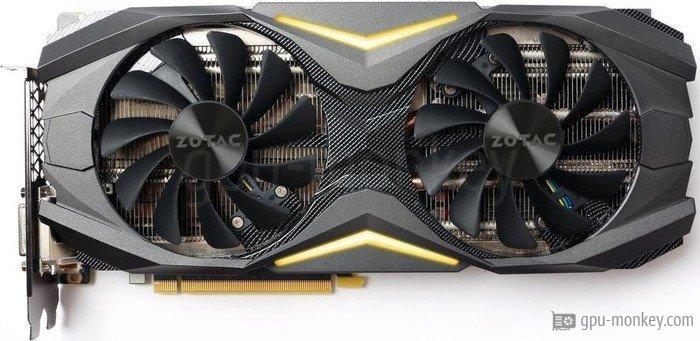

ZOTAC GeForce GTX 1080 AMP Edition View

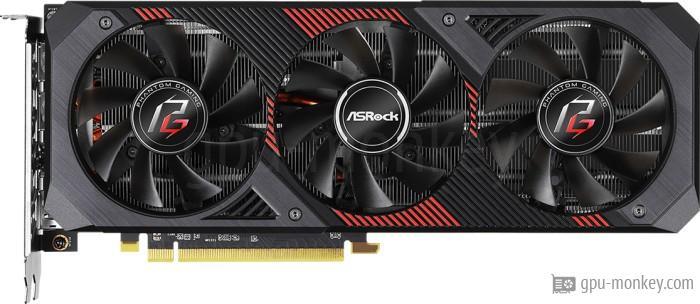

ASRock Radeon RX 5600 XT Phantom Gaming D3 6G OC View
ASUS TUF Gaming X3 Radeon RX 5600 XT OC Evo View

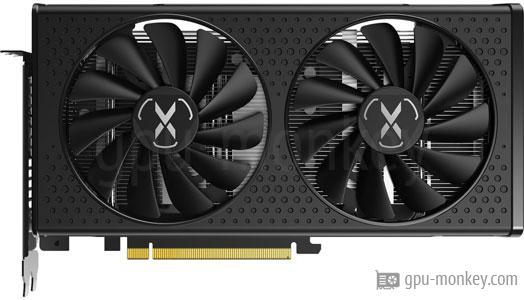

XFX Speedster SWFT 210 AMD Radeon RX 6600 XT Core Gaming View
ASUS Dual Radeon RX 5600 XT Top Evo View
MSI Radeon RX 5600 XT Gaming X View

*

Base Clock - the guaranteed speed specified by the manufacturer, reflecting the cooling and binning standards for which the GPU is factory-tested.

Boost Clock - the theoretical minimum speed achievable when overclocking the graphics card, taking into account cooling and binning considerations.
