PNY GeForce RTX 2060 Blower

Graphics card PNY GeForce RTX 2060 Blower, specifications and benchmarks

2096 place in the overall ranking Graphics Cards!
Review of the PNY GeForce RTX 2060 Blower 6 GB GDDR6 graphics card. Is it suitable for gaming, encoding, or 4K? What can the PNY GeForce RTX 2060 Blower be compared to, and what equivalents are better or worse than this model? What equivalent is available for purchase? Choose a processor for PNY GeForce RTX 2060 Blower 6 GB GDDR6 using detailed specifications and upgrade your workstation.

Specifications

Technical data
General Info

This section outlines the key features of the graphics card PNY GeForce RTX 2060 Blower.

  • Based on
    NVIDIA GeForce RTX 2060
  • GPU Chip
    TU106
  • Execution units
    30
  • Shader
    1920
  • Render Output Units
    48
  • Texture Units
    120
no data
Memory Specs

Specifications for onboard video memory, including type (e.g., GDDR6), capacity, and bandwidth. Higher capacity and bandwidth contribute to improved gaming and rendering performance.

  • Memory Size
    6 GB
  • Memory Type
    GDDR6
  • Memory Speed
    1.75 GHz
  • Memory Bandwith
    336 GB/s
  • Memory Interface
    192 bit
no data
Clock Frequency

Information on the base and boost clock speeds of the graphics card, which directly affect its performance in gaming and rendering applications. PNY GeForce RTX 2060 Blower.

  • Base Clock
    1.365 GHz
  • Boost Clock
    1.680 GHz
  • Overclocking
    Yes
* see below
Thermal Management

Details on the thermal design power (TDP) of the graphics card, including the maximum thermal output under standard and overclocked conditions, guiding the selection of cooling solutions.

  • TDP
    160 W
  • TDP (up)
    --
  • Tjunction max
    --
  • PCIe-Power
    1 x 8-Pin
no data
Cooler & Fan Types

Specifications of the cooling system, including fan types and configurations, which are critical for maintaining optimal operating temperatures during intensive workloads. PNY GeForce RTX 2060 Blower.

  • Fan-Type
    Radial
  • Cooler-Type
    Air cooling
  • Fan 1
    1 x 65 mm
  • Noise (Idle)
    0 dB / Silent
  • Fan 2
    --
  • Noise (Load)
    --
no data
Interfaces

Detailed information about connectivity options, including HDMI, DisplayPort, and DVI interfaces, along with their respective capabilities and supported resolutions.

  • Max. Displays
    4
  • HDCP-Version
    2.2
  • HDMI Ports
    1x HDMI v2.0b
  • DP Ports
    3x DP v1.4a
  • DVI Ports
    --
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical Data

An overview of the hardware capabilities of the graphics card, including support for technologies like ray tracing, DLSS, and Vulkan, which enhance graphical fidelity and performance.

  • Max. resolution
    7680x4320
  • DirectX
    12_2
  • Raytracing
    Yes
  • DLSS / FSR
    Yes
  • LED
    No LED lighting
no data
Supported Video Codecs

Support for various video codecs, such as H.264, HEVC, and VP9, which enhance video playback and streaming capabilities by offloading tasks from the CPU.

  • h264
    Decode / Encode
  • VP8
    Decode
  • h265 / HEVC
    Decode / Encode
  • VP9
    Decode
  • AV1
    No
no data
Dimensions
  • Length
    281 mm
  • Height
    125 mm
  • Width
    42 mm
  • Width (Slots)
    2 PCIe-Slots
  • Weight
    --
no data
Additional Information
  • GPU Interface
    PCIe 3.0 x 16
  • Release date
    Q3/2019
  • Release price
    --
  • Structure size
    12 nm
  • Part-no
    VCG20606BLMPB
  • Documents
    data sheet
no data
Positions in all rankings

Common positions PNY GeForce RTX 2060 Blower GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    2212 place
  • Battlefield 5
    2342 place
  • Shadow of the Tomb Raider
    2459 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    2092 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    2061 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    1580 place
  • 3DMark Benchmark
    1898 place
  • Crypto-Mining Vertcoin Hashrate (MH/s)
    1408 place

Benchmarks

Performance tests GPU

Evaluate the performance scores from various benchmark tests for PNY GeForce RTX 2060 Blower in comparison with other graphics cards to gain insights into the GPU's real-world speed during content processing.

Benchmarks encompass tasks such as floating point calculations, 3D model creation, and cryptocurrency mining.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
3DMark Benchmark
3DMark is designed for gamers, overclockers and system builders who want to get the most out of their hardware
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
24 fps (avg)
24 fps (avg)
23 fps (avg)
PNY GeForce RTX 2060 Blower
23 fps (avg)
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards
Crypto-Mining Vertcoin Hashrate (MH/s)
VertCoin cryptocurrency can be mined on both Nvidia and AMD and is interesting because it mines perfectly on old GPUs like GTX1050, R9 290 and even GTX970

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with PNY GeForce RTX 2060 Blower.

EVGA GeForce RTX 2060 GAMING View
GIGABYTE GeForce GTX 1070 G1 Gaming 8G View
INNO3D GeForce GTX 1070 iCHILL X3 View
INNO3D GeForce GTX 1070 iCHILL X3 V2 View
EVGA GeForce RTX 2060 SC BLACK GAMING View
EVGA GeForce RTX 2060 SC ULTRA BLACK View
EVGA GeForce RTX 2060 XC BLACK GAMING View

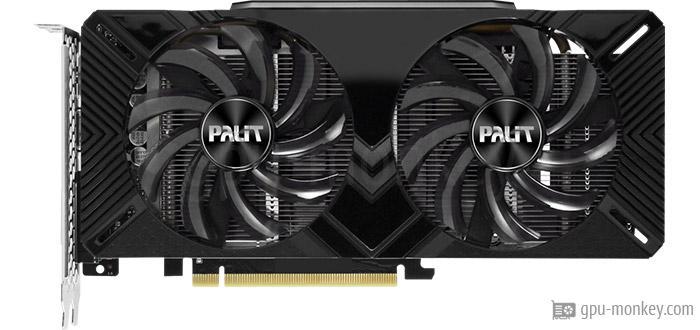

Palit GeForce RTX 2060 Dual V1 View

*

Base Clock - the guaranteed speed specified by the manufacturer, reflecting the cooling and binning standards for which the GPU is factory-tested.

Boost Clock - the theoretical minimum speed achievable when overclocking the graphics card, taking into account cooling and binning considerations.
