Released
Q4/2022
NVIDIA RTX 6000 Ada

Graphics card NVIDIA RTX 6000 Ada, specifications and benchmarks

Review of the NVIDIA RTX 6000 Ada 48 GB GDDR6 graphics card. Is it suitable for gaming, encoding, or 4K? What can the NVIDIA RTX 6000 Ada be compared to, and what equivalents are better or worse than this model? What equivalent is available for purchase? Choose a processor for NVIDIA RTX 6000 Ada 48 GB GDDR6 using detailed specifications and upgrade your workstation.

Specifications

Technical data
General Info

This section outlines the key features of the graphics card NVIDIA RTX 6000 Ada.

  • GPU Chip
    AD102
  • Execution units
    18176
  • Render Output Units
    192
  • Texture Units
    568
  • L1 Cache
    128 KB
  • L2 Cache
    96 MB
  • RT Cores
    142
no data
Memory Specs

Specifications for onboard video memory, including type (e.g., GDDR6), capacity, and bandwidth. Higher capacity and bandwidth contribute to improved gaming and rendering performance.

  • Memory Size
    48 GB
  • Memory Type
    GDDR6
  • Memory Clock
    2.0 GHz
  • Memory Speed
    16 Gbps
  • Memory Bandwith
    768.0 GB/s
  • Memory Interface
    384 bit
no data
Clock Frequency

Information on the base and boost clock speeds of the graphics card, which directly affect its performance in gaming and rendering applications. NVIDIA RTX 6000 Ada.

  • Base Clock
    2.175 GHz
  • Boost Clock
    2.535 GHz
* see below
Thermal Management

Details on the thermal design power (TDP) of the graphics card, including the maximum thermal output under standard and overclocked conditions, guiding the selection of cooling solutions.

  • TDP
    300 W
  • Power Connectors
    1x 16-pin
  • Slot
    Dual-slot
  • Suggested PSU
    700 W
no data
Interfaces

Detailed information about connectivity options, including HDMI, DisplayPort, and DVI interfaces, along with their respective capabilities and supported resolutions.

  • Max. Displays
    4
  • DP Ports
    4x DisplayPort 1.4a
no data
Technical Data

An overview of the hardware capabilities of the graphics card, including support for technologies like ray tracing, DLSS, and Vulkan, which enhance graphical fidelity and performance.

  • Max. resolution
    3840x2160
  • DirectX
    12.2
  • OpenGL
    4.6
  • OpenCL
    3.0
  • Vulkan
    1.3
  • CUDA
    8.9
  • Shader Model
    6.7
no data
Dimensions
  • Length
    267 mm
  • Width
    112 mm
no data
Additional Information
  • Architecture
    Ada Lovelace
  • GPU Interface
    PCIe 4.0 x16
  • Structure size
    4 nm
  • Release date
    Q4/2022
no data
Theoretical Performance
  • Pixel Rate
    486.7 GPixel/s
  • Texture Rate
    1,440 GTexel/s
  • FP16 (half)
    92.15 TFLOPS (1:1)
  • FP32 (float)
    92.15 TFLOPS
  • FP64 (double)
    1,440 GFLOPS (1:64)
no data
Positions in all rankings

Common positions NVIDIA RTX 6000 Ada GPU in popular benchmarks, for comparison with other models.

  • Performance relative to other GPU chips
    10 place

Benchmarks

Performance tests GPU

Evaluate the performance scores from various benchmark tests for NVIDIA RTX 6000 Ada in comparison with other graphics cards to gain insights into the GPU's real-world speed during content processing.

Benchmarks encompass tasks such as floating point calculations, 3D model creation, and cryptocurrency mining.

Performance relative to other GPU chips
100%
NVIDIA RTX 6000 Ada
91%
72%
NVIDIA GeForce RTX 4080
51%

Synonyms

Similar GPUs in terms of performance.

Similar in technical data graphics cards with NVIDIA RTX 6000 Ada.

Intel Arc A770M View

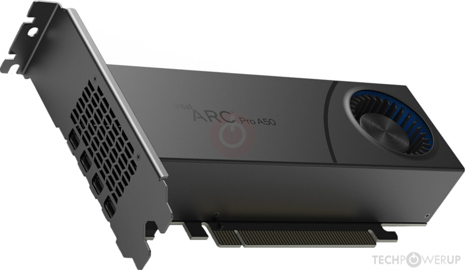

Intel Arc Pro A50 View

*

Base Clock - the guaranteed speed specified by the manufacturer, reflecting the cooling and binning standards for which the GPU is factory-tested.

Boost Clock - the theoretical minimum speed achievable when overclocking the graphics card, taking into account cooling and binning considerations.
