Select processor 1
Select processor 2
MSI Radeon RX 6650 XT MECH 2X 8G OC
Select video card 2
Overall score
star star star star star
Released
Q2/2022
MSI Radeon RX 6650 XT MECH 2X 8G OC

Graphics card MSI Radeon RX 6650 XT MECH 2X 8G OC, specifications and benchmarks

1693 place in the overall ranking Graphics Cards!
Review of the MSI Radeon RX 6650 XT MECH 2X 8G OC 8 GB GDDR6 graphics card. Is it suitable for gaming, encoding, or 4K? What can the MSI Radeon RX 6650 XT MECH 2X 8G OC be compared to, and what equivalents are better or worse than this model? What equivalent is available for purchase? Choose a processor for MSI Radeon RX 6650 XT MECH 2X 8G OC 8 GB GDDR6 using detailed specifications and upgrade your workstation.

Specifications

Technical data
General Info

This section outlines the key features of the graphics card MSI Radeon RX 6650 XT MECH 2X 8G OC.

  • Based on
    AMD Radeon RX 6650 XT
  • GPU Chip
    Navi 23 KXT
  • Execution units
    32
  • Shader
    2048
  • Render Output Units
    64
  • Texture Units
    128
no data
Memory Specs

Specifications for onboard video memory, including type (e.g., GDDR6), capacity, and bandwidth. Higher capacity and bandwidth contribute to improved gaming and rendering performance.

  • Memory Size
    8 GB
  • Memory Type
    GDDR6
  • Memory Clock
    2.190 GHz
  • Memory Speed
    17.5 Gbps
  • Memory Bandwith
    280 GB/s
  • Memory Interface
    128 bit
no data
Clock Frequency

Information on the base and boost clock speeds of the graphics card, which directly affect its performance in gaming and rendering applications. MSI Radeon RX 6650 XT MECH 2X 8G OC.

  • Base Clock
    2.055 GHz
  • Boost Clock
    2.669 GHz+ 1 %
  • Avg (Game) Clock
    2.447 GHz+ 2 %
  • Overclocking
    Yes
* see below
Thermal Management

Details on the thermal design power (TDP) of the graphics card, including the maximum thermal output under standard and overclocked conditions, guiding the selection of cooling solutions.

  • TDP
    175 W-1 %
  • TDP (up)
    --
  • Tjunction max
    --
  • PCIe-Power
    1 x 8-Pin
no data
Cooler & Fan Types

Specifications of the cooling system, including fan types and configurations, which are critical for maintaining optimal operating temperatures during intensive workloads. MSI Radeon RX 6650 XT MECH 2X 8G OC.

  • Fan-Type
    Axial
  • Fan 1
    2 x 100 mm
  • Fan 2
    --
  • Cooler-Type
    Air cooling
  • Noise (Idle)
    0 dB / Silent
  • Noise (Load)
    --
no data
Interfaces

Detailed information about connectivity options, including HDMI, DisplayPort, and DVI interfaces, along with their respective capabilities and supported resolutions.

  • Max. Displays
    4
  • HDCP-Version
    2.3
  • HDMI Ports
    1x HDMI v2.1
  • DP Ports
    3x DP v1.4a
  • DVI Ports
    --
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical Data

An overview of the hardware capabilities of the graphics card, including support for technologies like ray tracing, DLSS, and Vulkan, which enhance graphical fidelity and performance.

  • Max. resolution
    7680x4320
  • DirectX
    12_2
  • Raytracing
    Yes
  • DLSS / FSR
    No
  • LED
    No LED lighting
no data
Supported Video Codecs

Support for various video codecs, such as H.264, HEVC, and VP9, which enhance video playback and streaming capabilities by offloading tasks from the CPU.

  • h264
    Decode / Encode
  • h265 / HEVC
    Decode / Encode
  • VP8
    Decode / Encode
  • VP9
    Decode / Encode
  • AV1
    Decode
no data
Dimensions
  • Length
    235 mm
  • Height
    125 mm
  • Width
    47 mm
  • Width (Slots)
    2 PCIe-Slots
  • Weight
    721 g
no data
Additional Information
  • GPU Interface
    PCIe 4.0 x 8
  • Release date
    Q2/2022
  • Release price
    --
  • Structure size
    7 nm
  • Part-no
    --
  • Documents
    data sheet
no data
Positions in all rankings

Common positions MSI Radeon RX 6650 XT MECH 2X 8G OC GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    1255 place
  • Battlefield 5
    1418 place
  • Shadow of the Tomb Raider
    1490 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    2318 place
  • 3DMark Benchmark
    1342 place

Benchmarks

Performance tests GPU

Evaluate the performance scores from various benchmark tests for MSI Radeon RX 6650 XT MECH 2X 8G OC in comparison with other graphics cards to gain insights into the GPU's real-world speed during content processing.

Benchmarks encompass tasks such as floating point calculations, 3D model creation, and cryptocurrency mining.

3DMark Benchmark
3DMark is designed for gamers, overclockers and system builders who want to get the most out of their hardware
10175
NVIDIA GeForce RTX 2070 SUPER
10102
NVIDIA GeForce GTX 1080 Ti
9666
9660
MSI Radeon RX 6650 XT MECH 2X 8G OC
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
55 fps (avg)
54 fps (avg)
MSI Radeon RX 6650 XT MECH 2X 8G OC
54 fps (avg)
54 fps (avg)
NVIDIA GeForce RTX 2070
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
38 fps (avg)
NVIDIA GeForce RTX 3070 Laptop GPU (Mobile)
38 fps (avg)
37 fps (avg)
MSI Radeon RX 6650 XT MECH 2X 8G OC
37 fps (avg)
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
27 MH/s
26 MH/s
NVIDIA GeForce RTX 3050 Ti Laptop GPU (Mobile)
26 MH/s
MSI Radeon RX 6650 XT MECH 2X 8G OC
26 MH/s
FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with MSI Radeon RX 6650 XT MECH 2X 8G OC.

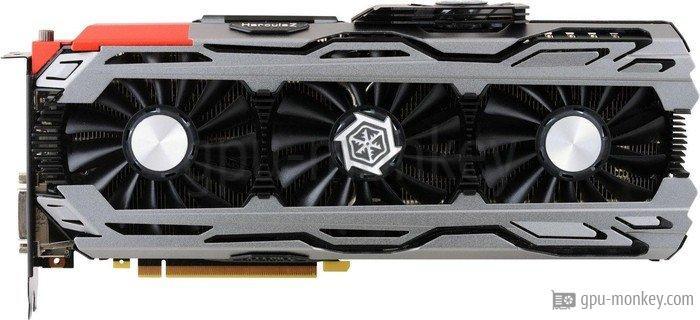

INNO3D GeForce GTX 1080 iCHILL X4 V2 View

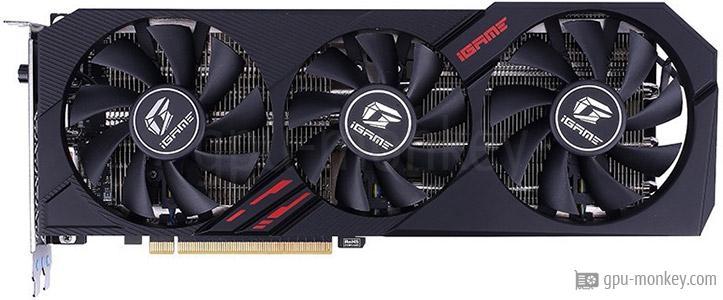

Colorful iGame GeForce RTX 2060 SUPER Ultra-V View

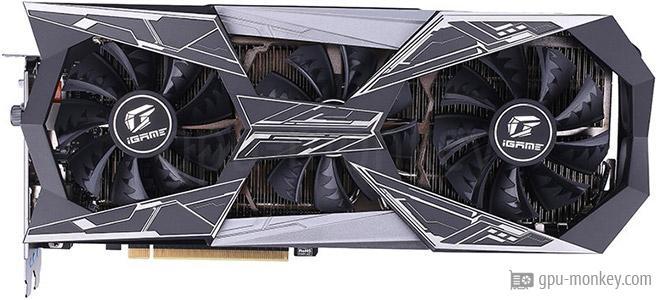

Colorful iGame GeForce RTX 2060 SUPER Vulcan OC-V View

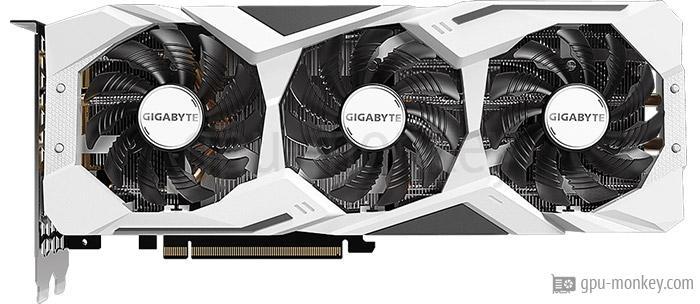

GIGABYTE GeForce RTX 2060 SUPER GAMING OC 3X WHITE 8G (rev. 1.0) View
EVGA GeForce GTX 1080 FTW HYBRID GAMING View

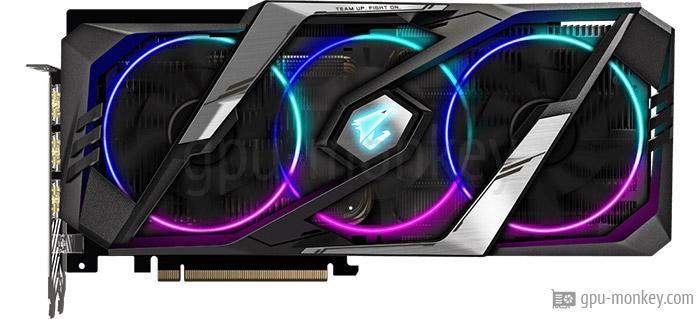

GIGABYTE AORUS GeForce RTX 2060 SUPER 8G (rev. 2.0) View

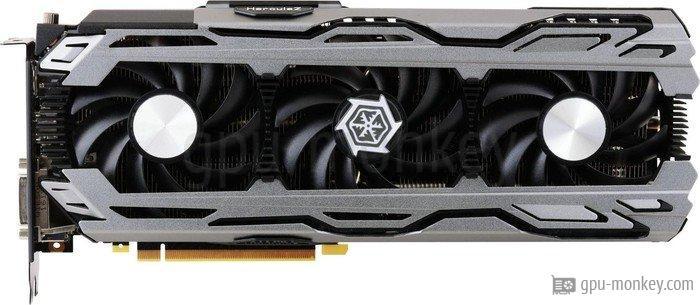

INNO3D GeForce GTX 1080 iCHILL X3 V2 View

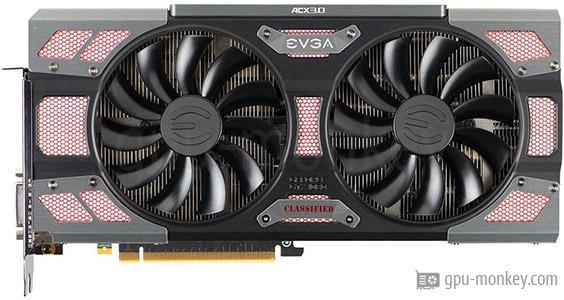

EVGA GeForce GTX 1080 CLASSIFIED GAMING View

*

Base Clock - the guaranteed speed specified by the manufacturer, reflecting the cooling and binning standards for which the GPU is factory-tested.

Boost Clock - the theoretical minimum speed achievable when overclocking the graphics card, taking into account cooling and binning considerations.
