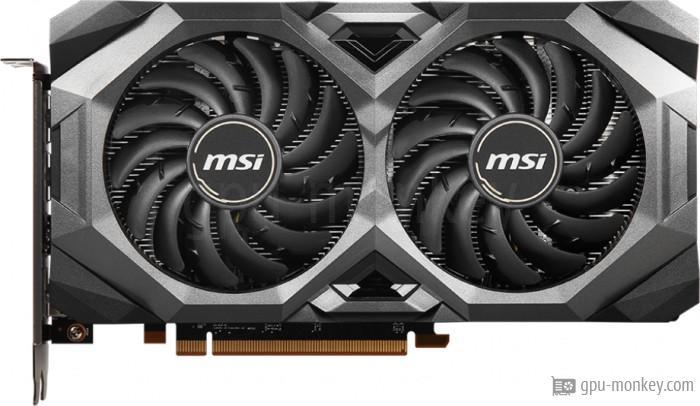

Graphics card MSI Radeon RX 5600 XT Gaming M, specifications and benchmarks

This section outlines the key features of the graphics card MSI Radeon RX 5600 XT Gaming M.

• Based on
  AMD Radeon RX 5600 XT
• GPU Chip
  Navi 10 XLE
• Execution units
  36
• Shader
  2304
• Render Output Units
  64
• Texture Units
  144

Specifications for onboard video memory, including type (e.g., GDDR6), capacity, and bandwidth. Higher capacity and bandwidth contribute to improved gaming and rendering performance.

• Memory Size
  6 GB
• Memory Type
  GDDR6
• Memory Speed
  1.75 GHz
• Memory Bandwith
  336 GB/s
• Memory Interface
  192 bit

Information on the base and boost clock speeds of the graphics card, which directly affect its performance in gaming and rendering applications. MSI Radeon RX 5600 XT Gaming M.

• Base Clock
  1.130 GHz
• Boost Clock
  1.560 GHz
• Avg (Game) Clock
  1.375 GHz
• Overclocking
  Yes

Details on the thermal design power (TDP) of the graphics card, including the maximum thermal output under standard and overclocked conditions, guiding the selection of cooling solutions.

• TDP
  160 W
• TDP (up)
  195 W
• Tjunction max
  --
• PCIe-Power
  2 x 8-Pin

Specifications of the cooling system, including fan types and configurations, which are critical for maintaining optimal operating temperatures during intensive workloads. MSI Radeon RX 5600 XT Gaming M.

• Fan-Type
  Axial
• Cooler-Type
  Air cooling
• Fan 1
  2 x 100 mm
• Noise (Idle)
  28 dB
• Fan 2
  --
• Noise (Load)
  33 dB

Detailed information about connectivity options, including HDMI, DisplayPort, and DVI interfaces, along with their respective capabilities and supported resolutions.

• Max. Displays
  4
• HDCP-Version
  2.3
• HDMI Ports
  1x HDMI v2.0b
• DP Ports
  3x DP v1.4
• DVI Ports
  --
• VGA Ports
  --
• USB-C Ports
  --

An overview of the hardware capabilities of the graphics card, including support for technologies like ray tracing, DLSS, and Vulkan, which enhance graphical fidelity and performance.

• Max. resolution
  7680x4320
• DirectX
  12_2
• Raytracing
  Yes
• DLSS / FSR
  No
• LED
  MSI Mystic Light

Support for various video codecs, such as H.264, HEVC, and VP9, which enhance video playback and streaming capabilities by offloading tasks from the CPU.

• h264
  Decode / Encode
• VP8
  Decode
• h265 / HEVC
  Decode / Encode
• VP9
  Decode / Encode
• AV1
  No

• Length
  297 mm
• Height
  141 mm
• Width
  42 mm
• Width (Slots)
  2 PCIe-Slots
• Weight
  922 g

• GPU Interface
  PCIe 4.0 x 16
• Release date
  Q1/2020
• Release price
  --
• Structure size
  7 nm
• Part-no
  --
• Documents
  data sheet

Common positions MSI Radeon RX 5600 XT Gaming M GPU in popular benchmarks, for comparison with other models.

• FP32 Performance (Single-precision TFLOPS)
  1952 place
• Battlefield 5
  1821 place
• Shadow of the Tomb Raider
  1983 place
• Crypto-Mining Ethereum Hashrate (MH/s)
  1465 place
• Crypto-Mining Ergo Hashrate (MH/s)
  1637 place
• Crypto-Mining Ravencoin Hashrate (MH/s)
  1686 place
• 3DMark Benchmark
  2163 place
• Crypto-Mining Vertcoin Hashrate (MH/s)
  1061 place
