MSI GeForce RTX 3070 Twin Fan 8G OC

Graphics card MSI GeForce RTX 3070 Twin Fan 8G OC, specifications and benchmarks

521 place in the overall ranking Graphics Cards!
Review of the MSI GeForce RTX 3070 Twin Fan 8G OC 8 GB GDDR6 graphics card. Is it suitable for gaming, encoding, or 4K? What can the MSI GeForce RTX 3070 Twin Fan 8G OC be compared to, and what equivalents are better or worse than this model? What equivalent is available for purchase? Choose a processor for MSI GeForce RTX 3070 Twin Fan 8G OC 8 GB GDDR6 using detailed specifications and upgrade your workstation.

Specifications

Technical data
General Info

This section outlines the key features of the graphics card MSI GeForce RTX 3070 Twin Fan 8G OC.

  • Based on
    NVIDIA GeForce RTX 3070
  • GPU Chip
    GA104-300-A1
  • Execution units
    46
  • Shader
    5888
  • Render Output Units
    96
  • Texture Units
    184
no data
Memory Specs

Specifications for onboard video memory, including type (e.g., GDDR6), capacity, and bandwidth. Higher capacity and bandwidth contribute to improved gaming and rendering performance.

  • Memory Size
    8 GB
  • Memory Type
    GDDR6
  • Memory Speed
    1.75 GHz
  • Memory Bandwith
    448 GB/s
  • Memory Interface
    256 bit
no data
Clock Frequency

Information on the base and boost clock speeds of the graphics card, which directly affect its performance in gaming and rendering applications. MSI GeForce RTX 3070 Twin Fan 8G OC.

  • Base Clock
    1.500 GHz
  • Boost Clock
    1.740 GHz+ 1 %
  • Overclocking
    Yes
* see below
Thermal Management

Details on the thermal design power (TDP) of the graphics card, including the maximum thermal output under standard and overclocked conditions, guiding the selection of cooling solutions.

  • TDP
    220 W
  • TDP (up)
    250 W+ 4 %
  • Tjunction max
    93 °C
  • PCIe-Power
    1 x 6-Pin, 1 x 8-Pin
no data
Cooler & Fan Types

Specifications of the cooling system, including fan types and configurations, which are critical for maintaining optimal operating temperatures during intensive workloads. MSI GeForce RTX 3070 Twin Fan 8G OC.

  • Fan-Type
    Axial
  • Cooler-Type
    Air cooling
  • Fan 1
    2 x 90 mm
  • Noise (Idle)
    0 dB / Silent
  • Fan 2
    --
  • Noise (Load)
    41 dB
no data
Interfaces

Detailed information about connectivity options, including HDMI, DisplayPort, and DVI interfaces, along with their respective capabilities and supported resolutions.

  • Max. Displays
    4
  • HDCP-Version
    2.3
  • HDMI Ports
    1x HDMI v2.1
  • DP Ports
    3x DP v1.4a
  • DVI Ports
    --
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical Data

An overview of the hardware capabilities of the graphics card, including support for technologies like ray tracing, DLSS, and Vulkan, which enhance graphical fidelity and performance.

  • Max. resolution
    7680x4320
  • DirectX
    12_2
  • Raytracing
    Yes
  • DLSS / FSR
    Yes
  • LED
    No LED lighting
no data
Supported Video Codecs

Support for various video codecs, such as H.264, HEVC, and VP9, which enhance video playback and streaming capabilities by offloading tasks from the CPU.

  • h264
    Decode / Encode
  • VP8
    Decode
  • h265 / HEVC
    Decode / Encode
  • VP9
    Decode
  • AV1
    Decode
no data
Dimensions
  • Length
    230 mm
  • Height
    115 mm
  • Width
    43 mm
  • Width (Slots)
    2 PCIe-Slots
  • Weight
    624 g
no data
Additional Information
  • GPU Interface
    PCIe 4.0 x 16
  • Release date
    Q4/2020
  • Release price
    549 $
  • Structure size
    8 nm
  • Part-no
    --
  • Documents
    data sheet
no data
Positions in all rankings

Common positions MSI GeForce RTX 3070 Twin Fan 8G OC GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    556 place
  • Battlefield 5
    673 place
  • Shadow of the Tomb Raider
    711 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    456 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    379 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    606 place
  • 3DMark Benchmark
    683 place
  • Crypto-Mining Vertcoin Hashrate (MH/s)
    209 place

Benchmarks

Performance tests GPU

Evaluate the performance scores from various benchmark tests for MSI GeForce RTX 3070 Twin Fan 8G OC in comparison with other graphics cards to gain insights into the GPU's real-world speed during content processing.

Benchmarks encompass tasks such as floating point calculations, 3D model creation, and cryptocurrency mining.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
3DMark Benchmark
3DMark is designed for gamers, overclockers and system builders who want to get the most out of their hardware
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
79 fps (avg)
ASUS Dual GeForce RTX 3070 SI Edition LHR
79 fps (avg)
78 fps (avg)
MSI GeForce RTX 3070 Twin Fan 8G OC
78 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
51 fps (avg)
51 fps (avg)
50 fps (avg)
MSI GeForce RTX 3070 Twin Fan 8G OC
50 fps (avg)
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards
Crypto-Mining Vertcoin Hashrate (MH/s)
VertCoin cryptocurrency can be mined on both Nvidia and AMD and is interesting because it mines perfectly on old GPUs like GTX1050, R9 290 and even GTX970
1.23 MH/s
1.23 MH/s
1.22 MH/s
MSI GeForce RTX 3070 Twin Fan 8G OC
1.22 MH/s

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with MSI GeForce RTX 3070 Twin Fan 8G OC.

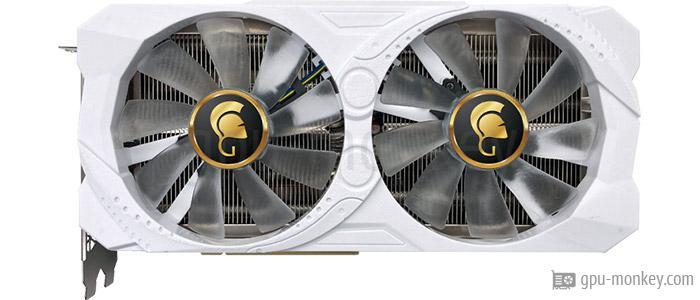

MANLI GeForce RTX 3070 Gallardo (M2502) View
GIGABYTE AORUS GeForce RTX 2080 Ti 11G View
GALAX GeForce RTX 3070 (1-Click OC) View
INNO3D GeForce RTX 3070 Twin X2 OC View
KFA2 GeForce RTX 2080 Ti HOF 10th Anniversary Edition View
Colorful iGame GeForce RTX 2080 Ti Neptune OC-V View
GALAX GeForce RTX 2080 Ti HOF 10th Anniversary Edition View
KFA2 GeForce RTX 3070 SG (1-Click OC) View

*

Base Clock - the guaranteed speed specified by the manufacturer, reflecting the cooling and binning standards for which the GPU is factory-tested.

Boost Clock - the theoretical minimum speed achievable when overclocking the graphics card, taking into account cooling and binning considerations.
