MSI GeForce RTX 3060 Ti Aero ITX 8G LHR
Select video card 2
Overall score
star star star star star
Released
Q2/2021
MSI GeForce RTX 3060 Ti Aero ITX 8G LHR

Graphics card MSI GeForce RTX 3060 Ti Aero ITX 8G LHR, specifications and benchmarks

913 place in the overall ranking Graphics Cards!
Review of the MSI GeForce RTX 3060 Ti Aero ITX 8G LHR 8 GB GDDR6 graphics card. Is it suitable for gaming, encoding, or 4K? What can the MSI GeForce RTX 3060 Ti Aero ITX 8G LHR be compared to, and what equivalents are better or worse than this model? What equivalent is available for purchase? Choose a processor for MSI GeForce RTX 3060 Ti Aero ITX 8G LHR 8 GB GDDR6 using detailed specifications and upgrade your workstation.

Specifications

Technical data
General Info

This section outlines the key features of the graphics card MSI GeForce RTX 3060 Ti Aero ITX 8G LHR.

  • Based on
    NVIDIA GeForce RTX 3060 Ti LHR
  • GPU Chip
    GA104-202-A1
  • Execution units
    38
  • Shader
    4864
  • Render Output Units
    80
  • Texture Units
    152
no data
Memory Specs

Specifications for onboard video memory, including type (e.g., GDDR6), capacity, and bandwidth. Higher capacity and bandwidth contribute to improved gaming and rendering performance.

  • Memory Size
    8 GB
  • Memory Type
    GDDR6
  • Memory Speed
    1.75 GHz
  • Memory Bandwith
    448 GB/s
  • Memory Interface
    256 bit
no data
Clock Frequency

Information on the base and boost clock speeds of the graphics card, which directly affect its performance in gaming and rendering applications. MSI GeForce RTX 3060 Ti Aero ITX 8G LHR.

  • Base Clock
    1.410 GHz
  • Boost Clock
    1.665 GHz-15 %
  • Overclocking
    Yes
* see below
Thermal Management

Details on the thermal design power (TDP) of the graphics card, including the maximum thermal output under standard and overclocked conditions, guiding the selection of cooling solutions.

  • TDP
    200 W
  • TDP (up)
    220 W
  • Tjunction max
    --
  • PCIe-Power
    1 x 8-Pin
no data
Cooler & Fan Types

Specifications of the cooling system, including fan types and configurations, which are critical for maintaining optimal operating temperatures during intensive workloads. MSI GeForce RTX 3060 Ti Aero ITX 8G LHR.

  • Fan-Type
    Axial
  • Cooler-Type
    Air cooling
  • Fan 1
    1 x 100 mm
  • Noise (Idle)
    0 dB / Silent
  • Fan 2
    --
  • Noise (Load)
    44 dB
no data
Interfaces

Detailed information about connectivity options, including HDMI, DisplayPort, and DVI interfaces, along with their respective capabilities and supported resolutions.

  • Max. Displays
    4
  • HDCP-Version
    2.3
  • HDMI Ports
    1x HDMI v2.1
  • DP Ports
    3x DP v1.4a
  • DVI Ports
    --
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical Data

An overview of the hardware capabilities of the graphics card, including support for technologies like ray tracing, DLSS, and Vulkan, which enhance graphical fidelity and performance.

  • Max. resolution
    7680x4320
  • DirectX
    12_2
  • Raytracing
    Yes
  • DLSS / FSR
    Yes
  • LED
    No LED lighting
no data
Supported Video Codecs

Support for various video codecs, such as H.264, HEVC, and VP9, which enhance video playback and streaming capabilities by offloading tasks from the CPU.

  • h264
    Decode / Encode
  • VP8
    Decode
  • h265 / HEVC
    Decode / Encode
  • VP9
    Decode
  • AV1
    Decode
no data
Dimensions
  • Length
    172 mm
  • Height
    125 mm
  • Width
    43 mm
  • Width (Slots)
    2 PCIe-Slots
  • Weight
    559 g
no data
Additional Information
  • GPU Interface
    PCIe 4.0 x 16
  • Release date
    Q2/2021
  • Release price
    429 $
  • Structure size
    8 nm
  • Part-no
    --
  • Documents
    data sheet
no data
Positions in all rankings

Common positions MSI GeForce RTX 3060 Ti Aero ITX 8G LHR GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    728 place
  • Battlefield 5
    1005 place
  • Shadow of the Tomb Raider
    858 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    1103 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    578 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    1279 place
  • 3DMark Benchmark
    856 place
  • Crypto-Mining Vertcoin Hashrate (MH/s)
    1329 place

Benchmarks

Performance tests GPU

Evaluate the performance scores from various benchmark tests for MSI GeForce RTX 3060 Ti Aero ITX 8G LHR in comparison with other graphics cards to gain insights into the GPU's real-world speed during content processing.

Benchmarks encompass tasks such as floating point calculations, 3D model creation, and cryptocurrency mining.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
3DMark Benchmark
3DMark is designed for gamers, overclockers and system builders who want to get the most out of their hardware
11759
11759
11754
MSI GeForce RTX 3060 Ti Aero ITX 8G LHR
11754
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
67 fps (avg)
67 fps (avg)
66 fps (avg)
MSI GeForce RTX 3060 Ti Aero ITX 8G LHR
66 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
48 fps (avg)
48 fps (avg)
47 fps (avg)
MSI GeForce RTX 3060 Ti Aero ITX 8G LHR
47 fps (avg)
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards
Crypto-Mining Vertcoin Hashrate (MH/s)
VertCoin cryptocurrency can be mined on both Nvidia and AMD and is interesting because it mines perfectly on old GPUs like GTX1050, R9 290 and even GTX970

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with MSI GeForce RTX 3060 Ti Aero ITX 8G LHR.

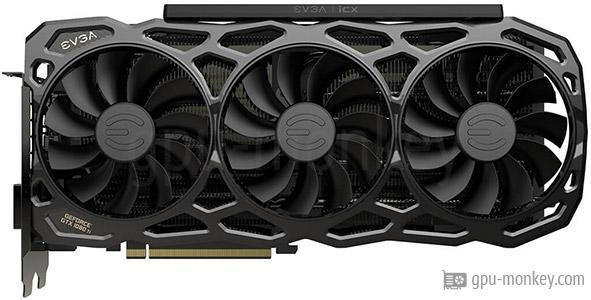

EVGA GeForce GTX 1080 Ti FTW3 ELITE GAMING BLACK View

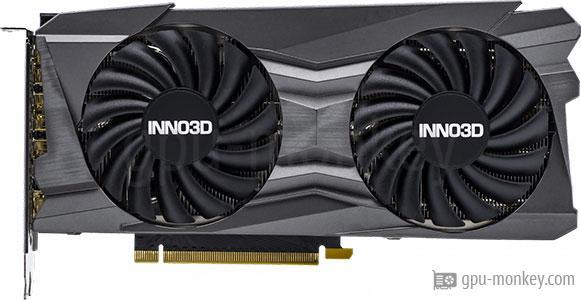

INNO3D GeForce RTX 3060 Ti Twin X2 LHR View

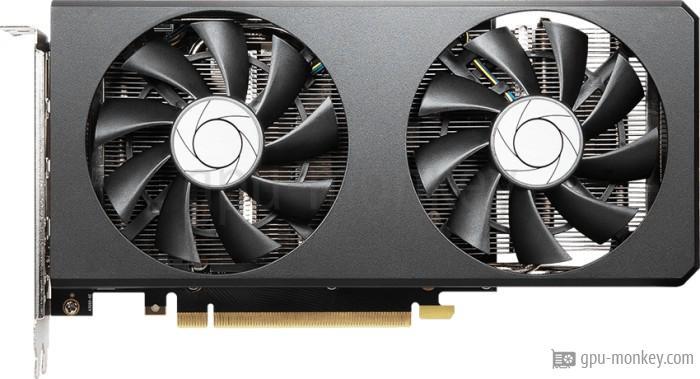

MSI GeForce RTX 3060 Ti Twin Fan 8G LHR View

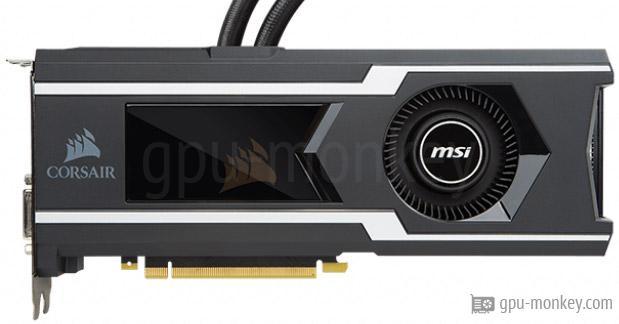

MSI GeForce GTX 1080 Ti SEA HAWK X View

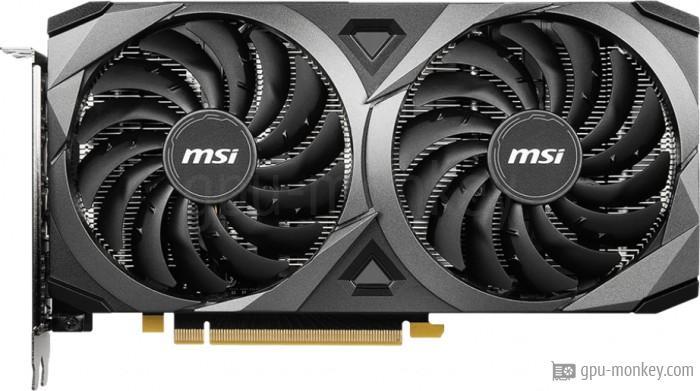

MSI GeForce RTX 3060 Ti Ventus 2X 8G V1 LHR View
EVGA GeForce GTX 1080 Ti FTW3 ELITE GAMING BLACK 12GHz View
GIGABYTE GeForce RTX 3060 Ti Eagle 8G (rev. 2.0) LHR View
INNO3D GeForce RTX 3060 Ti Twin X2 LHR V2 View

*

Base Clock - the guaranteed speed specified by the manufacturer, reflecting the cooling and binning standards for which the GPU is factory-tested.

Boost Clock - the theoretical minimum speed achievable when overclocking the graphics card, taking into account cooling and binning considerations.
