MSI GeForce GT 1030 AERO ITX 2GD4 OCV1

Graphics card MSI GeForce GT 1030 AERO ITX 2GD4 OCV1, specifications and benchmarks

3027 place in the overall ranking Graphics Cards!
Review of the MSI GeForce GT 1030 AERO ITX 2GD4 OCV1 2 GB DDR4 graphics card. Is it suitable for gaming, encoding, or 4K? What can the MSI GeForce GT 1030 AERO ITX 2GD4 OCV1 be compared to, and what equivalents are better or worse than this model? What equivalent is available for purchase? Choose a processor for MSI GeForce GT 1030 AERO ITX 2GD4 OCV1 2 GB DDR4 using detailed specifications and upgrade your workstation.

Specifications

Technical data
General Info

This section outlines the key features of the graphics card MSI GeForce GT 1030 AERO ITX 2GD4 OCV1.

  • Based on
    NVIDIA GeForce GT 1030 (DDR4)
  • GPU Chip
    GP108-310-A1
  • Execution units
    3
  • Shader
    384
  • Render Output Units
    16
  • Texture Units
    24
no data
Memory Specs

Specifications for onboard video memory, including type (e.g., GDDR6), capacity, and bandwidth. Higher capacity and bandwidth contribute to improved gaming and rendering performance.

  • Memory Size
    2 GB
  • Memory Type
    DDR4
  • Memory Speed
    1.05 GHz
  • Memory Bandwith
    17 GB/s
  • Memory Interface
    64 bit
no data
Clock Frequency

Information on the base and boost clock speeds of the graphics card, which directly affect its performance in gaming and rendering applications. MSI GeForce GT 1030 AERO ITX 2GD4 OCV1.

  • Base Clock
    1.189 GHz+ 3 %
  • Boost Clock
    1.430 GHz+ 4 %
  • Overclocking
    Yes
* see below
Thermal Management

Details on the thermal design power (TDP) of the graphics card, including the maximum thermal output under standard and overclocked conditions, guiding the selection of cooling solutions.

  • TDP
    30 W+ 50 %
  • TDP (up)
    --
  • Tjunction max
    --
no data
Cooler & Fan Types

Specifications of the cooling system, including fan types and configurations, which are critical for maintaining optimal operating temperatures during intensive workloads. MSI GeForce GT 1030 AERO ITX 2GD4 OCV1.

  • Fan-Type
    Axial
  • Cooler-Type
    Air cooling
  • Fan 1
    1 x 80 mm
  • Noise (Idle)
    --
  • Fan 2
    --
  • Noise (Load)
    --
no data
Interfaces

Detailed information about connectivity options, including HDMI, DisplayPort, and DVI interfaces, along with their respective capabilities and supported resolutions.

  • Max. Displays
    3
  • HDCP-Version
    2.2
  • HDMI Ports
    1x HDMI v2.0b
  • DP Ports
    --
  • DVI Ports
    --
  • VGA Ports
    1
  • USB-C Ports
    --
no data
Technical Data

An overview of the hardware capabilities of the graphics card, including support for technologies like ray tracing, DLSS, and Vulkan, which enhance graphical fidelity and performance.

  • Max. resolution
    4096x2160
  • DirectX
    12_1
  • Raytracing
    No
  • DLSS / FSR
    No
  • LED
    No LED lighting
no data
Supported Video Codecs

Support for various video codecs, such as H.264, HEVC, and VP9, which enhance video playback and streaming capabilities by offloading tasks from the CPU.

  • h264
    Decode
  • VP8
    No
  • h265 / HEVC
    Decode
  • VP9
    Decode
  • AV1
    No
no data
Dimensions
  • Length
    147 mm
  • Height
    102 mm
  • Width
    38 mm
  • Width (Slots)
    2 PCIe-Slots
  • Weight
    279 g
no data
Additional Information
  • GPU Interface
    PCIe 3.0 x 4
  • Release date
    Q1/2018
  • Release price
    --
  • Structure size
    14 nm
  • Part-no
    --
  • Documents
    data sheet
no data
Positions in all rankings

Common positions MSI GeForce GT 1030 AERO ITX 2GD4 OCV1 GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    3098 place
  • Battlefield 5
    2993 place
  • Shadow of the Tomb Raider
    3030 place

Benchmarks

Performance tests GPU

Evaluate the performance scores from various benchmark tests for MSI GeForce GT 1030 AERO ITX 2GD4 OCV1 in comparison with other graphics cards to gain insights into the GPU's real-world speed during content processing.

Benchmarks encompass tasks such as floating point calculations, 3D model creation, and cryptocurrency mining.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
1.13
1.13
1.1
MSI GeForce GT 1030 AERO ITX 2GD4 OCV1
1.1
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
8 fps (avg)
8 fps (avg)
1 fps (avg)
MSI GeForce GT 1030 AERO ITX 2GD4 OCV1
1 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
6 fps (avg)
6 fps (avg)
2 fps (avg)
MSI GeForce GT 1030 AERO ITX 2GD4 OCV1
2 fps (avg)
GIGAYBYTE GeForce GT 1030 OC 2G

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with MSI GeForce GT 1030 AERO ITX 2GD4 OCV1.

EVGA GeForce GT 1030 DDR4 View

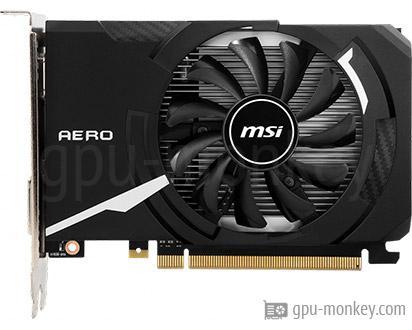

MSI GeForce GT 1030 AERO ITX 2GD4 OC View
GIGABYTE GeForce GT 1030 Low Profile D4 2G DDR4 View
MSI GeForce GT 1030 2G LP OC View
MSI GeForce GT 1030 AERO ITX 2G OC View

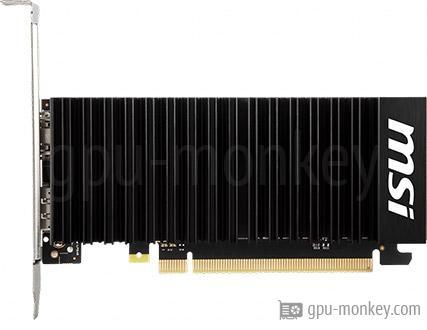

MSI GeForce GT 1030 2GHD4 LP OC View
ASUS GeForce GT 1030 silent DDR4 View
MSI GeForce GT 1030 2GD4 LP OC View

*

Base Clock - the guaranteed speed specified by the manufacturer, reflecting the cooling and binning standards for which the GPU is factory-tested.

Boost Clock - the theoretical minimum speed achievable when overclocking the graphics card, taking into account cooling and binning considerations.
